Product Introduction

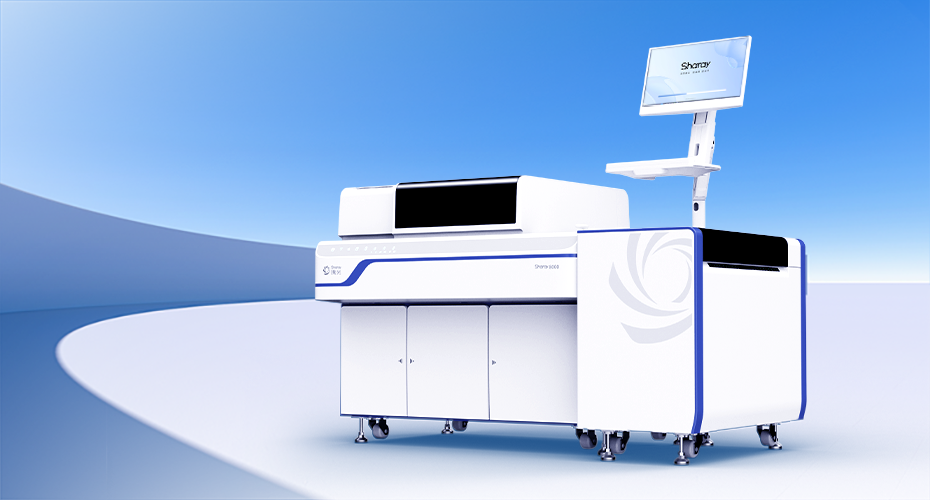

Sharay 8000, a self-developed and manufactured instrument by C-luminary Biotech, offering a new choice for chemiluminescence assays for laboratories with a large scale. It supports a full range of tests, including autoimmune, allergens, thrombus, cytokines, and routine assays. It achieves a throughput of up to 1000 tests/hour per module and features 40 reagent positions (expandable to 115 for allergens). With a time to first result of just 15 minutes, it also offers bidirectional LIS communication and can be operated as a four-instrument integrated system.

Product Features

•  Measurement principle: Alkaline phosphatase chemiluminescence method
•  Throughput: Up to 1000 T/H (single module), Up to 4000 T/H (4 modules combined)
•  First Result: 15 mins
•  Sample Position: 200, STAT function available
•  Reagent Position: 40, expandable to 115 for allergens
•  Cuvette Loading: ≥1600, continuous loading, real-time reserve monitoring
•  Magnetic Separation: 8-phase magnetic separation, dual washing system
•  Software System: Bidirectional LIS connection, independent reporting system
•  Dilution Mode: Automatic dilution, minimizing manual operations
•  Temperature control: Constant temperature control, ensuring the stability of the results
•  External Dimension (L*W*H): 2000mm*1050mm*1400mm (Single module), 3445mm*1050mm*1400mm (Two-module combined)
•  Net Weight: 650kg

Fully Automated CLIA Analyzer
